408L Multi Functional Two Boxes Thermal Cycling
Test Chamber For Electronic Products
Application:
- Our chambers was awarded Energy Saving Technology
Certification,with which enterprise can save up to 38% energy.
- The chamber can be used for rapid temperature changing screening
test of various small products, such as instruments, communication
electronic parts, wearable and other terminal products.
- It can be used for high temperature test,low temperature
test,constant temperature and humidity test,high-low temperature
alternation test,and high-low temperature and humidity alternation
test.
|
Corresponding Standard:
GB/T 5170.2-2008
GB/T 5170.5-2008
GB/T 2423.1-2008(IEC60068-2-1:2007)
GB/T 2423.2-2008(IEC60068-2-2:2007)
GB/T 2423.3-2016(IEC60068-2-78:2012)
GB/T 2423.4-2008(IEC60068-2-30:2005)
GB/T 2424.7-2008
GJB 150.3A-2009
GJB 150.4A-2009
GJB 150.9A-2009
|
Technical Parameters :
| Item Name | 408L Multi Functional Two Boxes Thermal Cycling Test Chamber For
Electronic Products |
| Model | DTB-408-A40B150-H-W |
| Workspace Dimensions(MM) | 600×800×850 |
| Volume(L) | 408 |
| Temperature Change Rate | 5/10/15℃/min |
| Temperature Range | -40℃～+150℃ |
| Humidity Range | 20%～98%RH |
| Power Supply | 380VAC±10%,50Hz±1% |
| Temperature Uniformity | ≤2℃(No Load) |
| Temperature Fluctuation | ≤±0.5℃(No Load) |
| Temperature Deviation | ≤2℃(No Load) |
| Humidity Deviation | ±3%RH(＞75%RH no load),±5%RH(≤75%RH no load) |
| Resolution | 0.1℃,1%RH |
Standard Configuration | Φ100mm cable port×2,with soft high-low temperature resistant rubber
plug Equipped with standard RS232/RS485/RJ45 communication interface Interior light |
Main Features:
| 1. The chamber adopts humanized man-machine interaction
interface,it is so easy for buyer to operate it. |
| 2. The chamber is matched remote monitoring software, and provides
RS232/RS485/RJ45 standard communication interfaces to realize the
remote control and management of the test chamber. |
| 3. The chamber is small and beautiful.It has stable performance and
low noise, and it is very suitable for various laboratories and
production lines. |
| 4. The chamber adopts innovative energy-saving technology and has
passed the national energy-saving certification. Compared with
other similar products,our chamber helps saving 38% energy. |
| 5. The chamber with advanced control logic and PID adjustment
technology so that it can maintain long-term stable operation. |
| 6. The chamber has multiple protection functions,which ensure the
safety and reliability of product testing. |
| 7. The main components of the chamber are from international
premium brands,so the whole machine has high reliability. |
Some Pictures of Our Products:

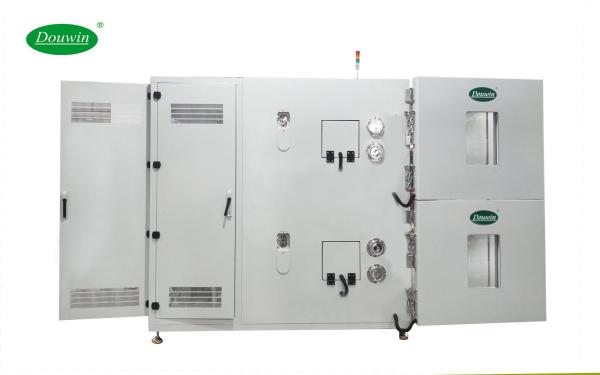

Whole machine showing, stable, beautiful and clean
The handle lock of the chamber, it is really safe to operate
Use Programmable LCD Touch Screen Controller with remote
communication
Why choose us?
1. We promised our customers that the testing equipments which were
produced by Douwin are superior on quality. We provide products and
service for numerous world-renowned enterprises,and get their high
praise.
2. We always do our best to satisfy our customers by providing 24
hours online consultation service,and also we have a professional
team who can provide the professsional program and technical
support for our customers.
3. Before shipment, our quality inspection department will check
the equipment to ensure that everything is okay with the goods.
Moreover, we use the safe wooden packing to protect the goods from
outside damage.
4. EXW or CIF are available,we have established long-term and
stable cooperation with international logistics providers which can
provide stable logistics services. Besides,customers can also
specify logistics providers according to own choice.
5. We are based on shenzhen,after nearly 20 years of
development,and in each region has set up the after-sales service
point and the service representative office .So we can provide the
after-sales service quickly, and also we provide 1 year free
warranty.
6. We provide other services:
Spare parts sales
Acceptable customization for all kinds of special specification
products；
Transform the equipment to save energy and optimize it to help
enterprises reduce costs,even the equipment is from different
manufacturers.
